Built for fast, surface-deployed manhole inspections, TREKK360 combines high-resolution 360° capture, controlled deployment, compact lighting, and a lightweight field kit.
Review system specifications, capture capabilities, deployment details, and inspection outputs below.
Camera
Insta360 X5
Video Resolution
Up to 8K 360°
Water Resistance
Submersible
Low Light
Superior low-light capture
Lenses
User-replaceable
Video Storage
Saves directly to memory card
Deployed System Weight
Under 8 lbs
Lighting
Two lights, 1,500 lumens each
Battery
Drop-in rechargeable battery pack for the motorized deployment rig; rechargeable 18650 batteries for the lights
Standard Pole
10-ft telescoping carbon fiber pole
Deployment
Surface deployed
Operation
Designed for one-person operation
Typical Inspection Time
Approximately 5 minutes
3D Model Capability
Captured footage can be used for photogrammetry-based 3D models
Inspection Coding
Footage supports NASSCO coding workflows

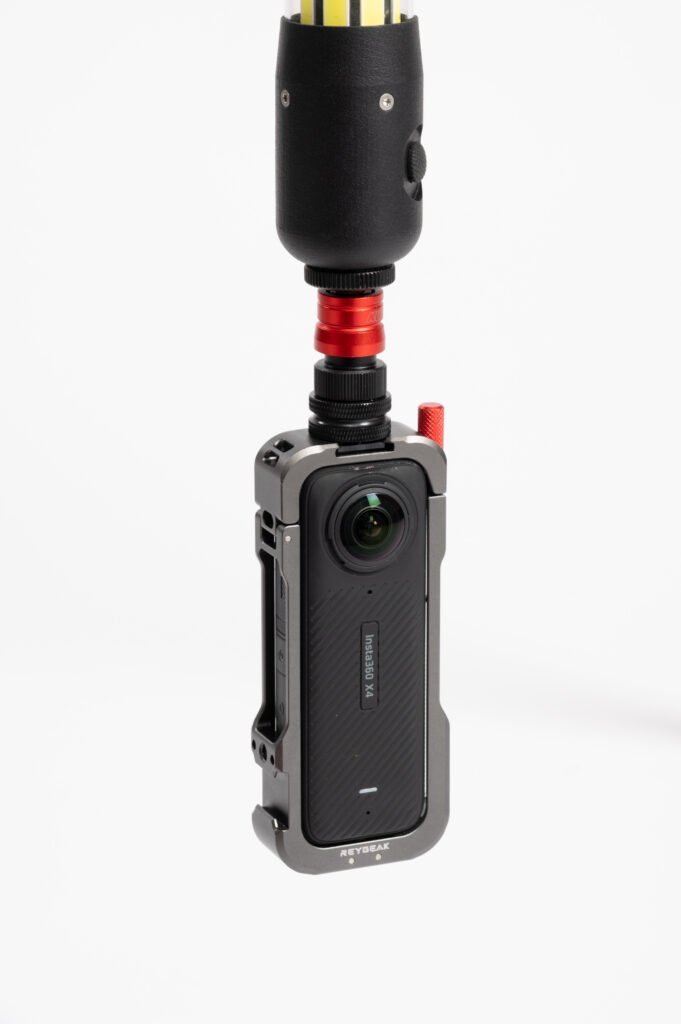

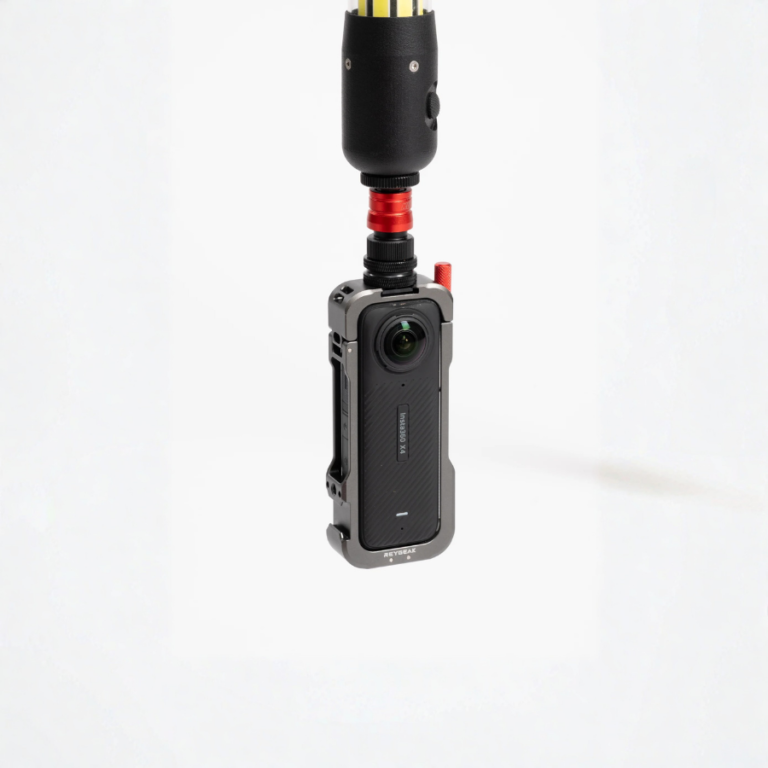

TREKK360 uses the Insta360 X5 to capture up to 8K 360° video throughout the structure. The high-resolution footage gives reviewers the ability to examine areas of interest after the inspection and provides the visual detail needed to support condition assessment and defect coding.
Resolution
Up to 8K
Field of View
360°
Capture Type
Continuous video
Camera Core
Insta360 X5
TREKK360 is designed for the dark, wet, and high-humidity environments commonly encountered in sewer infrastructure.
TREKK360 includes two compact, stackable lights designed to illuminate the manhole while maintaining a minimal footprint around the camera. Each light provides 1,500 lumens to improve visibility throughout the structure and reduce shadows.
Lighting Output
1,500 lumens per light (2 included)
Configuration
Stackable
Purpose
Improve visibility and reduce shadowing during inspection

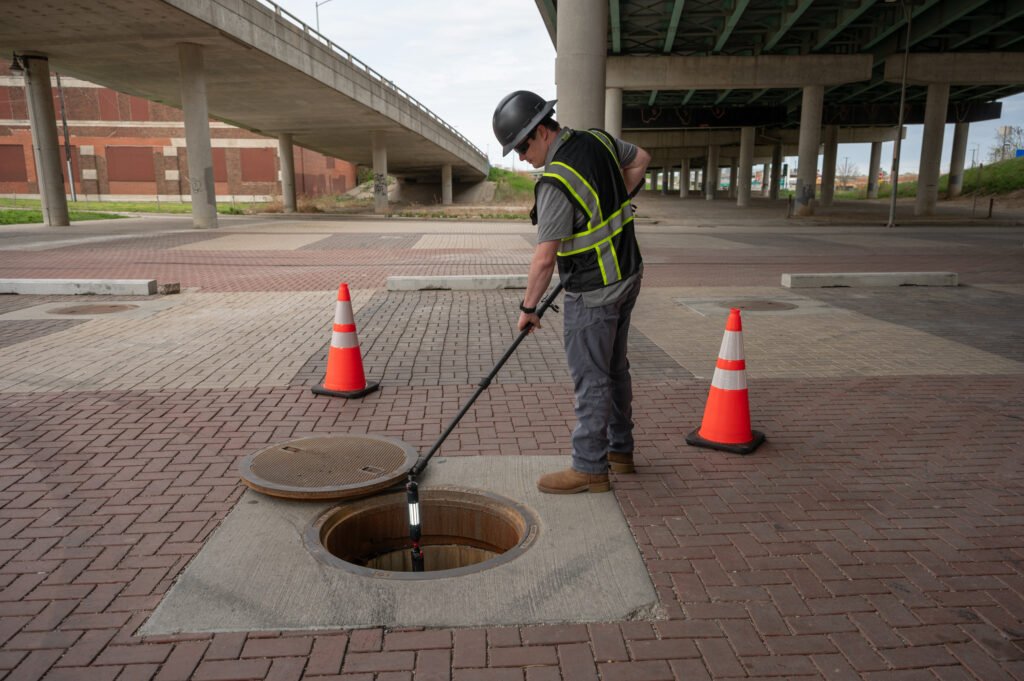

The TREKK360 motorized deployment rig lowers the camera into the structure and brings it back to the surface while continuous 360° video is recorded. A single dial controls the motor speed, so operators can slow down for a closer look or speed up to reach the invert. Steady, motor-driven travel helps produce stable inspection footage for downstream review and processing.
Deployment Method
Motorized deployment rig
Descent & Ascent
Motorized, both directions
Speed Control
Variable, set by dial
Rig Power
Drop-in rechargeable battery pack
Operator Position
Above grade (no entry required)
Capture Mode
Continuous during descent
Tripod
Carbon fiber construction
Standard Pole
10-ft telescoping carbon fiber pole

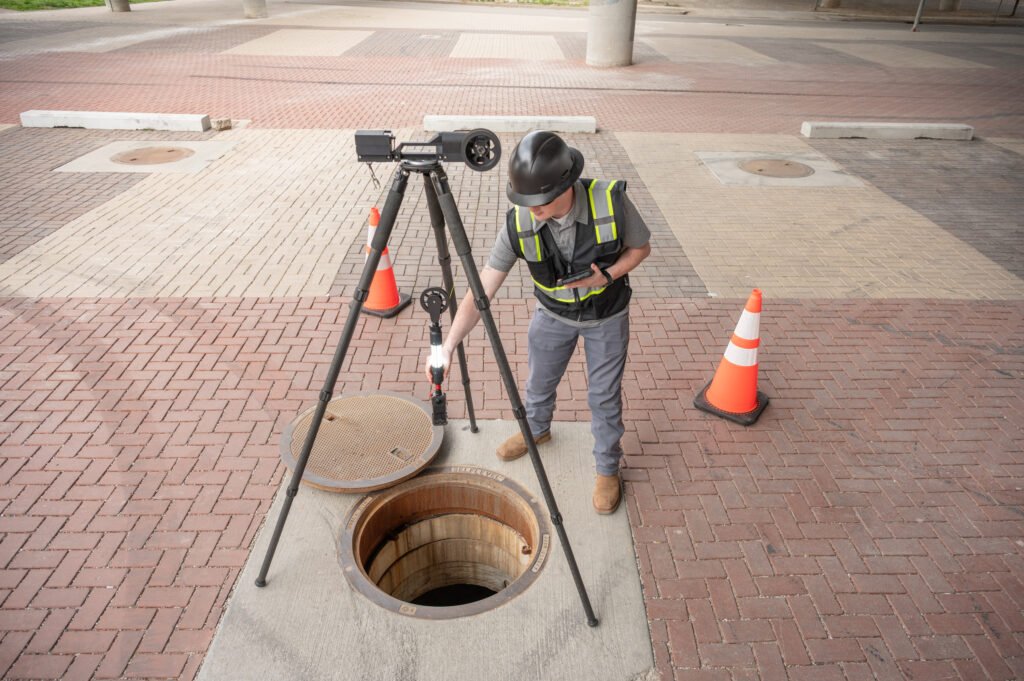

The provided TREKK360 specifications identify the carbon fiber tripod system as rated to 100 ft. The standard kit includes a 10-foot telescoping carbon fiber pole, with extensions available for structures beyond the standard configuration.
Rated Depth
Up to 100 ft
Standard Pole
10 ft Telescoping
Extensions
Modular extensions available on request
The TREKK360 system weighs less than eight pounds when deployed over the manhole. The camera, motorized deployment rig, lighting, reference board, and supporting accessories pack into a Pelican case, while the tripod travels in a separate sling bag.
Deployed System Weight
Under 8 lbs
Transport Profile
Pelican case + tripod sling bag
Tripod Material
Carbon fiber
Designed For
Portable field deployment
Designed to Keep Crews Moving
~5 MIN INSPECTION
TREKK360 is designed around a simple setup, capture, and teardown process that takes approximately five minutes per manhole under typical conditions.
Setup, capture, retrieve, and move on
Typical setup: tripod position + reference board placement
UP TO 60 / DAY
Depending on site conditions, traffic control, and travel between structures, a single operator can complete up to 60 inspections per day.
No file transfer required between structures
Saves directly to memory card automatically
Field Note: Actual inspection times and daily production vary based on site conditions, travel distance, traffic control, structure configuration, and project requirements.
TREKK360 records one high-resolution 360° video per structure. From that single file, your team or ours can produce several different outputs, using whatever software or workflow you already run.
THE SOURCE
Every inspection starts here: one continuous 360° video of the whole structure, captured in a single pass. Everything to the right is made from it.
Up to 8K · saves to memory card · one pass per structure
WHAT IT BECOMES
DEFECT ANALYSIS
The footage provides the visual detail needed for qualified personnel to review conditions and assign defect codes.
3D MODELING
Inspection footage can be processed using photogrammetry to create measurable 3D models.
SPATIAL MAPPING
TREKK360 footage can serve as the source data for measurable point-cloud outputs.
GIS INTEGRATION
Inspection files can be associated with mapped assets to support GIS-based asset management workflows.
MEASUREMENTS FROM 3D MODELS AND POINT CLOUDS
Side-pipe diameters
Mainline diameters
Cracks and defects
Structural features
Asset components
Use the Workflow That Works for Your Team
TREKK360 captures the inspection footage. Your organization can then use its preferred software or processing workflow to create downstream deliverables.
Optional TREKK360 Portal Services can also be used to process, organize, host, review, and share inspection information.
Explore Portal Services →AVAILABLE DELIVERABLE OUTPUTS
High-resolution 360° video
Measurable 3D models
Point clouds
Inspection measurements
GIS-connected records
Shareable project deliverables
The TREKK360 kit includes the core equipment needed for field capture. Packed securely in a heavy-duty, field-tested rapid transport enclosure.
See What's in the Kit →
1
Insta360 X5 360° camera
2
Carbon fiber tripod
3
Motorized deployment rig
4
Stackable lighting system
5
Reference board
6
Telescoping carbon fiber pole
7
Supporting accessories
8
Pelican case
Inspection programs are different. Structure depth, inspection volume, data requirements, and processing workflows can all affect the right configuration for your team. Tell us about your application and we'll help determine how TREKK360 can fit into your inspection program.
