ENTER LESS. SEE MORE. INSPECT FASTER.
Capture high-resolution 360° manhole inspections from the surface with a lightweight system built for safer, faster field work.
TREKK360 helps utilities, contractors, and engineering teams capture clear inspection footage, support NASSCO MACP coding workflows, and create a permanent digital record of underground assets—without sending personnel into the structure.
< 8 LBS
DEPLOYED SYSTEM WEIGHT
8K 360°
MAX CAPTURE RESOLUTION
100 FT
RATED DEPTH LIMIT
MOTORIZED
DESCENT & ASCENT
Tell us who you are and we'll walk you through system options, pricing, and how it fits your inspection program.
■ 10,000+ MANHOLES INSPECTED
■ UNDER 5-MINUTE DEPLOYMENT
■ MOTORIZED DESCENT & ASCENT
■ ONE-PERSON OPERATION
TRUSTED BY UTILITIES, CONTRACTORS AND ENGINEERING FIRMS
Trusted for More Than 10,000 Manhole Inspections
“
“With TREKK360, we're consistently getting higher-quality, more stable footage. Being able to run inspections as a one-person unit has helped us reduce job costs and stay efficient in the field.”
Josh Stallard
Vice President, Utility Inspection Services
“
“Using the TREKK360 is simple. Turn the camera on, drop it in, pull it up, and move to the next one.”
Jamie Truax
Owner, Truax Corporation
A quick look at the system deploying and capturing in the field.
MOTORIZED DEPLOYMENT RIG
The motorized deployment rig lowers the camera into the structure and brings it back up. No hand-lowering, no hauling. Turn the dial to set the pace: slow down for a closer look, or speed up when you just need to reach the invert.
DIAL CONTROL
One dial sets the motor speed, so you can match the pace to each structure and what you need to see.
DESCENT & ASCENT
The rig handles both directions, so nobody is lowering or pulling the camera up by hand, structure after structure.
FOOTAGE
Motor-driven movement keeps the camera steady from rim to invert, for clearer, more consistent inspection footage.
POWER
The rig runs on a rechargeable battery, so there's no generator to haul to the manhole.
Side by side: a conventional entry inspection versus a surface-deployed TREKK360 capture.
WHAT CHANGES
TRADITIONAL ENTRY INSPECTION
WITH TREKK360
Getting the camera down
A crew member climbs in, or a pole or rope is lowered by hand.
✓ The motorized deployment rig lowers and raises the camera, with speed set by a dial.
Crew exposure
Hazardous confined-space entry protocols on every structure.
✓ 100% surface operation. No one goes below grade.
Crew size
Multiple operators plus extensive safety gear and setup.
✓ One operator with a kit that weighs under 8 lb deployed.
Time per structure
Lengthy gear-up, entry, and exit before any data is collected.
✓ Set up, capture, and retrieve in under 5 minutes.
Structures per day
Often fewer than 10.
✓ Up to 60.
The record you keep
Subjective visual notes with no repeatable photographic proof.
✓ 8K 360° video that supports NASSCO MACP coding and can be reviewed any time.
From the truck to the next structure in about five minutes, with one operator and no entry.
01

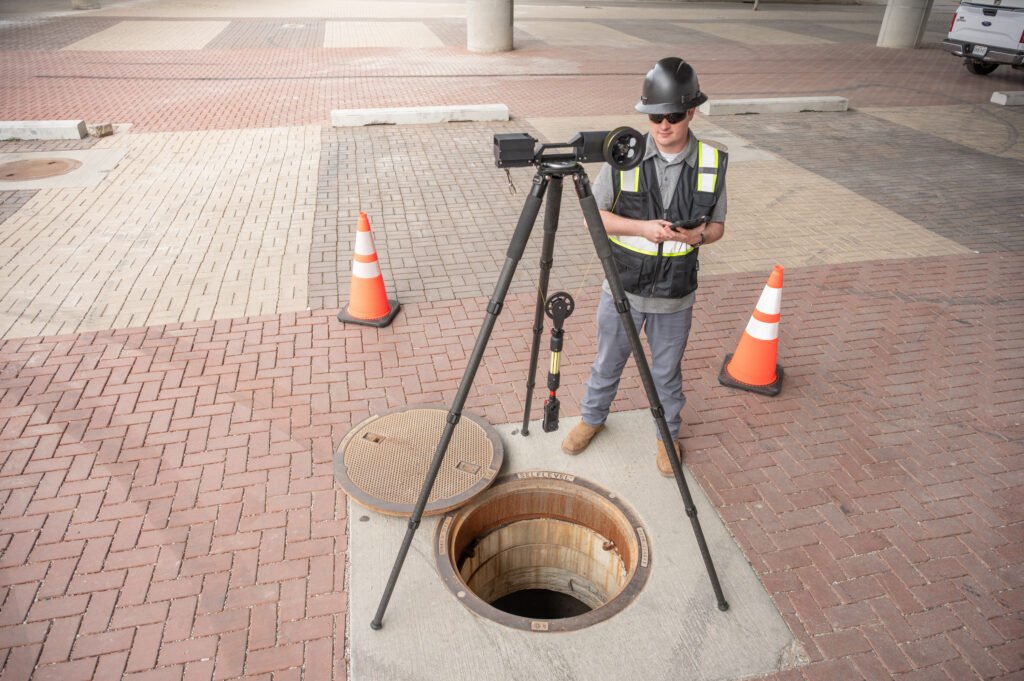

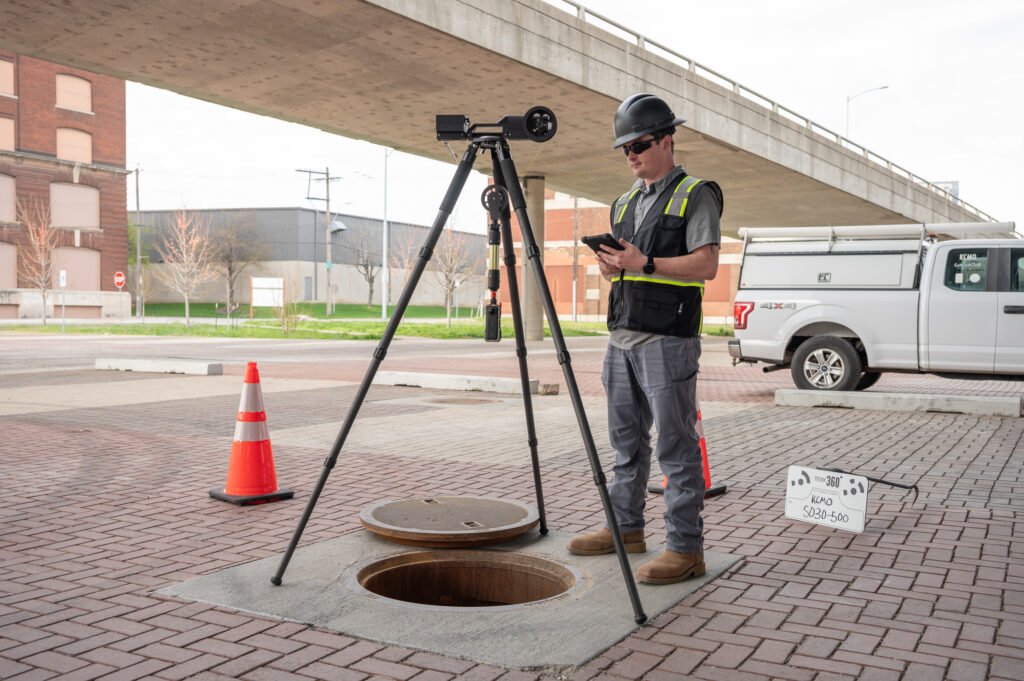

Center the carbon-fiber tripod over the opening and align the system for capture.
02
The motorized deployment rig lowers the 360° camera and brings it back up, at whatever speed you set, while the lights illuminate the structure.
03

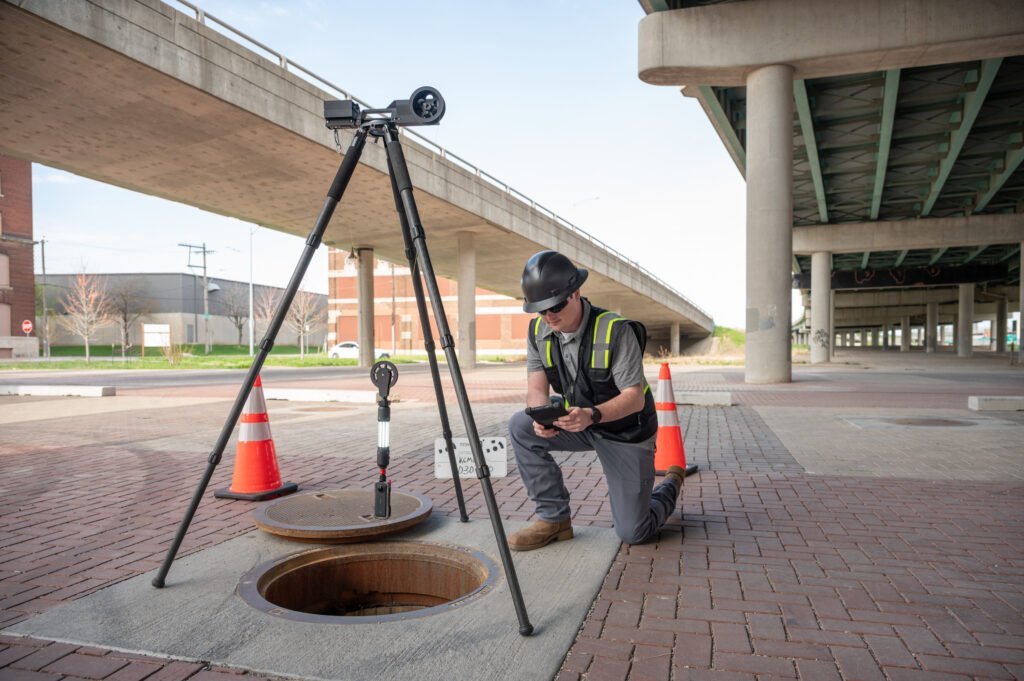

With the camera back at the surface, confirm the footage on the tablet and head to the next structure.
TYPICAL TIME PER STRUCTURE: ABOUT 5 MINUTES · UP TO 60 STRUCTURES A DAY
BUILT AROUND YOUR INSPECTION PROGRAM
Share a few details and we'll walk you through system options, pricing, and how it fits the structures you inspect.
✓ One-person operation ✓ About 5 minutes per structure ✓ No confined-space entry
Everything deploys from the surface in about five minutes. The system weighs under eight pounds over the manhole, packs into a Pelican case, and is run by a single operator.
CAPTURE
Up to 8K 360° video with the detail to review structural condition, identify defects, and support assessment.
DEPLOYMENT
Crews stay above grade while the camera, lights, and motorized rig capture the structure below.
CONTROL
The motorized deployment rig lowers and raises the camera, with speed set by a dial.
LIGHTING
Two stackable 1,500-lumen lights illuminate dark structures without blocking the field of view.
SPEED
Set up, capture, retrieve, and move on to the next one.
WEIGHT
Camera, motor, lights, and accessories pack into a Pelican case; the tripod travels in a separate sling bag.
8K 360° camera
Captures the full structure in a single pass, so nothing is missed and nothing has to be re-shot.
Stackable lighting
The lights travel with the camera, so the wall is evenly lit at every depth.
Motorized deployment rig
Lowers and raises the camera on a rechargeable battery, with one dial to speed it up or slow it down.
Capture It Once. Use It Again and Again.
TREKK360 creates more than a visual record. High-resolution inspection footage supports NASSCO MACP coding and can be used with your preferred processing workflow—or optional TREKK360 Portal Services—to generate measurable 3D models, point clouds, and organized records.
USE YOUR INSPECTION DATA TO:
— Review assets remotely from the office
— Measure defects and structural dimensions
— Generate photogrammetry 3D models and point clouds
— Connect inspection profiles directly to your GIS map
Whether you own the assets, inspect them, or design the repair, TREKK360 gives everyone the same high-resolution record to work from.
UTILITIES & CITIES
Track structural degradation reliably, avoid unnecessary entries, and build a consistent, repeatable record across the whole system.
INSPECTION CONTRACTORS
Complete up to 60 runs a day with a single operator, and hand off MACP-compatible datasets clients can use right away.
CONSULTING ENGINEERS
Extract dimensionally accurate models, verify points of collapse, and make data-driven rehab decisions with confidence.
Capture better information. Reduce unnecessary entry. Give your team a clearer view of underground infrastructure. See how TREKK360 fits into your inspection program today.
